ID
DigBal02
Unit Peralatan Makmal Penyelidikan Berpusat
Unit Peralatan Makmal Penyelidikan Berpusat

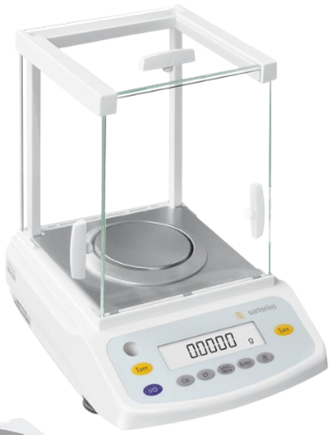

Digital Balance
Brand
Sartorius
Model
BSA 224S-CW
Intro
Measuring instruments used in quantitative chemical analysis, to determine the mass of solid objects, liquid, powders and granular substances.
Application
• Used in the determination and analysis of the density of solvent.
• Used in percentage weighing that allows more efficient formulation in chemicals and pharmaceuticals.
• Used to prepare samples and reagents.
• Used in the calibration of pipettes.
• Dynamic weighing/ animal weighing
• Counting
• Net total
Technical
Specification
• Weighing capacity: 220 g
• Readability: 0.1 mg
• Pan size: Ø 90 mm
• Repeatability: < + 0.1 mg
• Linearity: < + 0.2 mg
• Adaptation to ambient condition: by selection of 1 of 4 optimized filter levels
• Advantage features/ equipment supplied:
o Monolithic technology based weigh cell for tolerating the fluctuation in accuracy with variation in temperature at root level
o Internal calibration
• Simple weight and mass unit conversion by toggling between two weight units from choice of many units
Location
1. Makmal Tisu Kultur, Aras 11, Jabatan Biokimia,
2. Makmal Biologi Molekul & Proteomik, Aras 11, Jabatan Biokimia
SAMPLE REQUIREMENT
• Powder, liquid or granules
TYPICAL RESULT
Max 220g d=0.1mg
PERSON INCHARGE
Pn. Shaliawani Mohd Puzi
shaliawani@ppukm.ukm.edu.my
Contact
03-9145 8654
