Spectrophotometer

Spectro01

Brand

Shimadzu

Model

UV-VIS 2450

Intro

A spectrophotometer is an instrument that measures the amount of photons (the intensity of light) absorbed after it passes through sample solution.

Application

Measuring absorbance of DNA, RNA, proteins and other biomolecules.

Technical
Specification

1. Setting wavelength range : 190-1100nm
2. Resolution : 0.1nm
3. Photometric system : double beam system
4. Photometric modes : absorbances, transmittance,reflectances,energy
5. Photometric repeatability : 0.1nm
6. Response : Optimum response speed automatically set depending on bandwidth, minimum 0.1sec

Location

Makmal Spektrofotometer & Imej, Aras 11, Jabatan Biokimia, Bangunan Praklinikal

SAMPLE REQUIREMENT

• samples of DNA , RNA
• samples of protein analysis
• colouring substances.

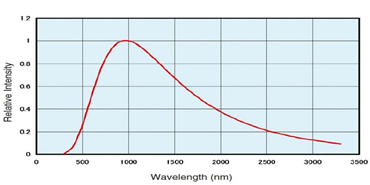

TYPICAL RESULT

PERSON INCHARGE

Pn. Nurul Akmal Muhamad

nurulakmal@ukm.edu.my

Contact

03-9289 9577

CHARGERS RATE

UKM

RM 15/Hour

GOVERNMENT

RM 22/Hour

PRIVATE

RM 44/Hour
