ID
Spectro02
Unit Peralatan Makmal Penyelidikan Berpusat
Unit Peralatan Makmal Penyelidikan Berpusat

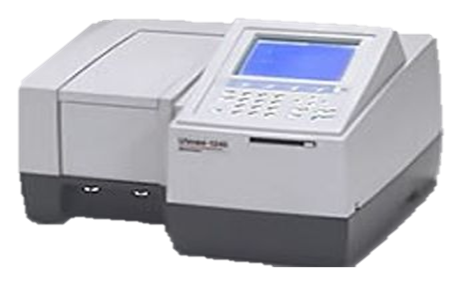

Spectrophotometer
Brand
Shimadzu
Model
UV -MINI 1240
Intro
A spectrophotometer is an instrument that measures the amount of photons (the intensity of light) absorbed after it passes through sample solution.
Application
Measuring absorbance of DNA, RNA, proteins and other biomolecules.
Technical
Specification
1. Wavelength range : 190 -1100nm
2. Beam : single
3. Wavelength accurancy : 1.0nm
4. Ambient temperature : 15 -35C
5. Ambient humidity : 45-80 %
6. Photometric repeatability : 0.02 Abs ( at 1.0 Abs)
Location
Makmal Spektrofotometer & Imej, Aras 11, Jabatan Biokimia, Bangunan Praklinikal
SAMPLE REQUIREMENT
• samples of DNA , RNA
• samples of protein analysis
• colouring substances.

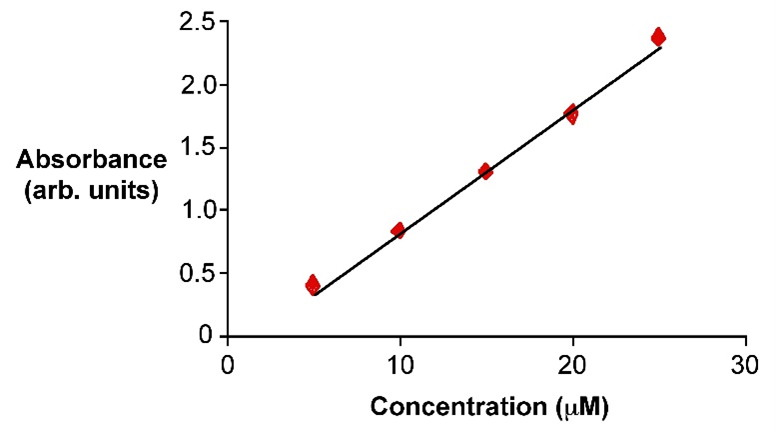

TYPICAL RESULT
PERSON INCHARGE
Pn. Nurul Akmal Muhamad
nurulakmal@ukm.edu.my
Contact
03-9289 9577
CHARGERS RATE
UKM
RM 15/Hour
GOVERNMENT
RM 22/Hour
PRIVATE
RM 44/Hour
