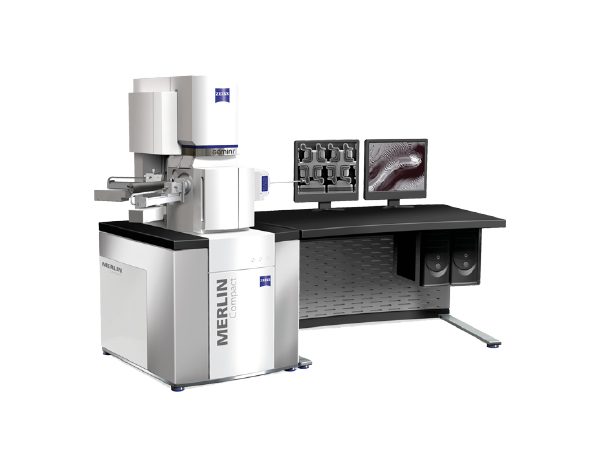

Field Emission Scanning Electron Microscope (FESEM) – Merlin Compact

Brand : ZEISS
Model : MERLIN Compact
Resolution : 0.8nm @ 15 kV / 1.6nm @ 1 kV / 0.8nm @ 30 kV (STEM mode)
Magnification : 12 – 2,000,000x

Field emission scanning electron microscopy (FESEM) provides topographical and elemental information at magnifications of 10x to 300,000x, with virtually unlimited depth of field. Compared with convention scanning electron microscopy (SEM), field emission SEM (FESEM) produces clearer, less electrostatically distorted images with spatial resolution down to 1 1/2 nanometers which is three to six times better.

Other features of field emission scanning electron microscopy (FESEM) include:

  • The ability to examine smaller-area contamination spots at electron accelerating voltages compatible with energy dispersive spectroscopy (EDS).
  • Reduced penetration of low-kinetic-energy electrons probes closer to the immediate material surface.
  • High-quality, low-voltage images with negligible electrical charging of samples (accelerating voltages ranging from 0.5 to 30 kilovolts).
  • Essentially no need for placing conducting coatings on insulating materials.

For ultra-high-magnification imaging, we use in-lens FESEM. In-lens field emission scanning electron microscopy (In-Lens FESEM) provides topographical information at magnifications of 250x to 1,000,000x, with virtually unlimited depth of field. In-lens FESEM produces clearer, less electrostatically distorted images than SEM, with spatial resolution down to 0.6 nanometers – three times better than regular FESEM and 10 times better than conventional SEM.

Category:

Description

Applications
The applications of FESEM include:
• Semiconductor device cross section analyses for gate widths, gate oxides, film thicknesses, and construction details
• Advanced coating thickness and structure uniformity determination
• Small contamination feature geometry and elemental composition measurement
Sample Requirements
• Powder
• Film
• Solid
• Dry
